Inductive Proximity Sensors
Green Inductive DC Proximity
Sensors and Inductive AC Proximity Sensors, also known as inductive sensors, non-contact metal detection sensors,
or proximity switches, are designed for precise object detection in industrial
automation systems. Built in a cylindrical threaded housing, these
sensors enable easy installation in machinery and control panels.
Operating on 10–30 VDC supply
voltage, they feature low current consumption (<15mA), high switching
frequency, and maximum load capacity of 200mA. Integrated polarity and
short circuit protection ensure reliable performance in high-speed
industrial sensing applications.

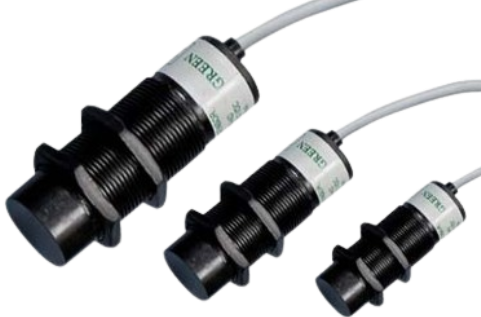

Capacitive Proximity Sensors
Green Capacitive DC Proximity Sensors and
Capacitive AC Proximity Sensors, also known as capacitive sensors or
non-contact material detection sensors, are designed for reliable sensing of
metallic and non-metallic materials in automation systems. These sensors can identify plastics, liquids, powders, glass, and wood
in industrial automation systems
These sensors feature a cylindrical threaded housing.
DC models operate on 10–30 VDC with low current consumption and 200 mA load
capacity, while AC models operate on 90–250 VAC with 250 mA load capacity.
Built-in polarity and short circuit protection ensure stable operation.
Photoelectric Sensors
Green Photoelectric Sensors, also
called optical sensors, light sensors, or photoelectric proximity sensors, are
used for non-contact object detection in industrial automation systems.
Available in cylindrical and rectangular designs, these sensors enable flexible
installation in machines and control panels.
Cylindrical Photoelectric
Sensors models operate on 10–30 VDC with 200 mA load
capacity with Built-in polarity and short circuit protection.
Rectangular Photoelectric
Sensors operate on 10–30 VDC, support up to 100 mA and
offer Light ON / Dark ON switching selection.
LOREM IPSUM
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Donec vitae tortor lobortis, suscipit elit vel, lobortis massa. Praesent id semper sem, non pellentesque ipsum. Ut in porta leo. Praesent ornare et urna et scelerisque.
LOREM IPSUM
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Donec vitae tortor lobortis, suscipit elit vel, lobortis massa. Praesent id semper sem, non pellentesque ipsum. Ut in porta leo. Praesent ornare et urna et scelerisque.
LOREM IPSUM
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Donec vitae tortor lobortis, suscipit elit vel, lobortis massa. Praesent id semper sem, non pellentesque ipsum. Ut in porta leo. Praesent ornare et urna et scelerisque.
| Image |
Ordering Code
|
output | supply voltage | diameter | sensing in mm | connector type | housing | Qty | Accessories | Enq |
|---|---|---|---|---|---|---|---|---|---|---|
|
C18-POF |
NO |
10-30VDC |
18mm-dia |
5 |
PNP |
Flush |
|
||
|
|
C18-POE |
NO |
10-30VDC |
18mm-dia |
8 |
PNP |
Non-Flush |
|
||
|
|
C18-PCF |
NC |
10-30VDC |
18mm-dia |
5 |
PNP |
Flush |
|
||
|
|
C18-PCE |
NC |
10-30VDC |
18mm-dia |
8 |
PNP |
Non-Flush |
|
||
|
|
C18-NOF |
NO |
10-30VDC |
18mm-dia |
5 |
NPN |
Flush |
|
||
|
|
C18-NOE |
NO |
10-30VDC |
18mm-dia |
8 |
NPN |
Non-Flush |
|
||
|
|
C18-NCF |
NC |
10-30VDC |
18mm-dia |
5 |
NPN |
Flush |
|
||
|
|
C18-NCE |
NC |
10-30VDC |
18mm-dia |
8 |
NPN |
Non-Flush |
|
||
|
|
C30-POF |
NO |
10-30VDC |
30mm-dia |
10 |
PNP |
Flush |
|
||
|
|
C30-POE |
NO |
10-30VDC |
30mm-dia |
15 |
PNP |
Non-Flush |
|
||
|
|
C30-PCF |
NC |
10-30VDC |
30mm-dia |
10 |
PNP |
Flush |
|
||
|
|
C30-PCE |
NC |
10-30VDC |
30mm-dia |
15 |
PNP |
Non-Flush |
|
||
|
|
C30-NOF |
NO |
10-30VDC |
30mm-dia |
10 |
NPN |
Flush |
|
||
|
|
C30-NOE |
NO |
10-30VDC |
30mm-dia |
15 |
NPN |
Non-Flush |
|
||
|
|
C30-NCF |
NC |
10-30VDC |
30mm-dia |
10 |
NPN |
Flush |
|
||
|
|
C30-NCE |
NC |
10-30VDC |
30mm-dia |
15 |
NPN |
Non-Flush |
|
||
|
|
C30 - AOF |
NO |
90 - 250 VAC |
30mm-dia |
10 |
-- |
Flush |
|
||
|
|
C30 - AOE |
NO |
90 - 250 VAC |
30mm-dia |
15 |
-- |
Non Flush |
|
||
|
|
C30 - ACF |
NC |
90 - 250 VAC |
30mm-dia |
10 |
-- |
Flush |
|
||
|
|
C30 - ACE |
NC |
90 - 250 VAC |
30mm-dia |
15 |
-- |
Non Flush |
|
