CTS Screw clamp Terminal Blocks
Connectwell
CTS Series Terminal Blocks, also known as screw clamp terminal blocks, DIN rail
terminals, feed-through terminals, or panel wiring connectors, are engineered
for secure and high-performance electrical terminations. In this technology, a
screw tightens the clamp to press the conductor firmly against the
current-carrying element, creating a strong and reliable connection. The
applied torque ensures consistent contact pressure, reducing resistance and
enhancing conductivity compared to conventional low-grade terminals. Ideal for
high-current circuits, these terminal blocks are widely used in control panels,
switchgear assemblies, PLC panels, OEM machinery, and industrial automation
systems.
Sizes (Cross-Section Range): 0.5 mm² to 25 mm² (model dependent)
Mounting: Standard DIN Rail
Mounting
Housing: Flame-retardant
Polyamide (PA 6.6), UL94 V-0
Protection Class: IP20
(Finger-safe design as per IEC standards)
CP Push - IN Terminal Blocks
Connectwell Push-In Series Terminal Blocks, also known as push-fit terminal blocks, spring clamp terminal blocks,
pluggable DIN rail terminals, or tool-less wiring terminals, are designed for
fast, secure, and vibration-resistant electrical connections. Featuring
advanced spring clamp technology, they enable direct conductor insertion
without screws, reducing installation time and ensuring consistent contact
pressure compared to conventional screw-type terminals. Their compact modular
design optimizes panel space while enhancing wiring reliability. Widely used in
control panels, PLC systems, switchgear assemblies, OEM machinery, and
industrial automation cabinets, these terminal blocks deliver safe, efficient,
and maintenance-friendly connectivity in demanding industrial environments.
Sizes (Cross-Section Range): 0.2 mm² to 16 mm² (model dependent)
Mounting: Standard DIN Rail
Mounting
Housing: Flame-retardant polyamide (PA 6.6), UL94 V-0
Protection Class: IP20 (finger-safe design as per IEC standards)
CX Spring Clamp Terminal Block
Connectwell CX Series Terminal Blocks, also known as spring clamp terminal blocks, tension clamp terminals,
DIN rail spring terminals, or vibration-resistant panel connectors, are
engineered for secure and maintenance-free electrical connections. Featuring
high-tensile spring clamp technology, the mechanism applies constant contact
pressure on the conductor, ensuring stable connectivity even under high
vibration and thermal cycling conditions. Unlike conventional screw-type
terminals, no re-tightening is required over time. Designed to accommodate both
solid and stranded wires, these terminals are ideal for control panels,
automation systems, railway applications, OEM machinery, and industrial
environments demanding long-term reliability.
Sizes (Cross-Section Range): 0.2 mm² to 16 mm² (model dependent)
Mounting: Standard DIN Rail
Mounting
Housing: Flame-retardant
Polyamide (PA 6.6), UL94 V-0
Protection Class: IP20
(Finger-safe design as per IEC standards)
CTS Accessories
CX & CP Accessories
LOREM IPSUM
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Donec vitae tortor lobortis, suscipit elit vel, lobortis massa. Praesent id semper sem, non pellentesque ipsum. Ut in porta leo. Praesent ornare et urna et scelerisque.
LOREM IPSUM
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Donec vitae tortor lobortis, suscipit elit vel, lobortis massa. Praesent id semper sem, non pellentesque ipsum. Ut in porta leo. Praesent ornare et urna et scelerisque.
LOREM IPSUM
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Donec vitae tortor lobortis, suscipit elit vel, lobortis massa. Praesent id semper sem, non pellentesque ipsum. Ut in porta leo. Praesent ornare et urna et scelerisque.
| Image |
Ordering Code
|
Description | Type | wire range | current a | voltage v | Color | Qty | Accessories | Enq |
|---|---|---|---|---|---|---|---|---|---|---|
|
CTS2.5UN |
2.5 mm² FEED TH... |
FEED THRU |
0.2 - 2.5 mm2 |
24 A |
1000 |
|
|||
|
|
CTS2.5UE |
2.5 mm² FD THRU... |
FEED THRU |
0.2 - 4.0 mm2 |
30 A |
1000 |
|
|||
|
CTS4UN |
4 mm² FD THRU S... |
FEED THRU |
0.2 - 4.0 mm2 |
32 A |
1000 |
|
|||
|
CTS6U |
6 mm² FEED THRU... |
FEED THRU |
0.5 - 6.0 mm2 |
41 A |
1000 |
|
|||
|

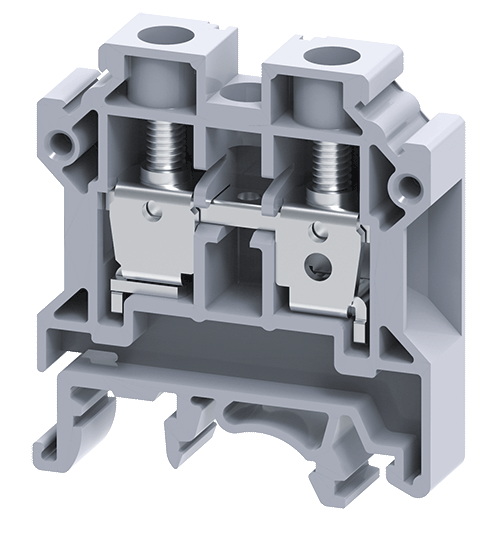

CTS10U |
10 mm² FD THRU... |
FEED THRU |
0.5 - 10.0 mm2 |
57 A |
1000 |
|
|||
|
CTS16U |
16 mm² FD THRU... |
FEED THRU |
0.2 - 16.0 mm2 |
76 A |
1000 |
|
|||
|
|
CTS25UN |
25 mm² FD THRU... |
FEED THRU |
4.0 - 25.0 mm2 |
101 A |
1000 |
|
|||
|
CTS35UN |
35 mm² FD THRU... |
FEED THRU |
4.0 - 35.0 mm2 |
125 A |
1000 |
|
|||
|
CTS50/70N |
70 mm² FEED THR... |
FEED THRU |
10.0 - 70.0 mm2 |
192 A |
1000 |
|
|||
|
CTS95/120N |
120 mm² FEED TH... |
FEED THRU |
25.0 - 120.0 mm2 |
269 A |
1000 |
|
|||
|
CMC1-2 |
4 mm² MULTIPLE... |
Multiple level |
0.2 - 4.0 mm2 |
32 A |
630 |
|
|||
|
CMC2-2 |
4 mm² MULTIPLE... |
Multiple level |
0.2 - 4.0 mm2 : |
32 A |
630 |
|
|||
|
ODLG2.5A |
2.5mm² MODULAR... |
Multiple level |
0.2 - 2.5 mm2 |
24 A |
800 |
|
|||
|
|
ODLG2.5 |
2.5mm² 2 LEVEL... |
Multiple level |
0.2 - 2.5 mm2 |
24 A |
800 |
|
|||
|
|
ODLG2.5A(I.S) |
2.5 sq.mm MODUL... |
Multiple level |
0.2 - 2.5 mm2 |
-- |
-- |
-- |
|
||
|
|
ODLG2.5(I.S) |
2.5mm² OFFSET 2... |
Multiple level |
0.2 - 2.5 mm2 |
-- |
-- |
-- |
|
||
|

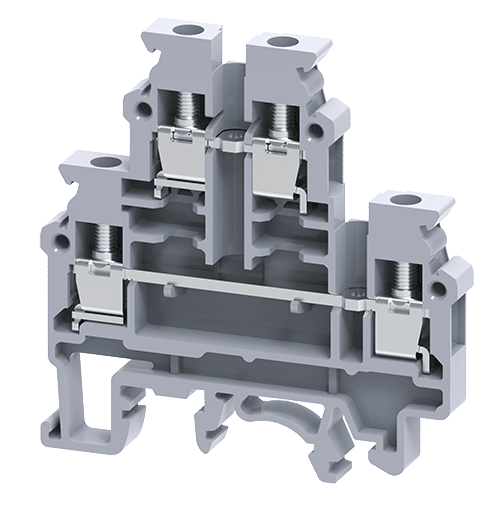

CDL4UN |
4 mm² 2 LEVEL S... |
Multiple level |
0.2 - 4.0 mm2 |
32 A |
800 |
|
|||
|
ODL4U |
4 mm² FEED THRU... |
Multiple level |
0.2 - 4.0 mm2 |
32 A |
800 |
|
|||
|
CDL4UN(I.S) |
4 mm² 2 LEVEL S... |
Multiple level |
0.2 - 4.0 mm2 |
32 A |
800 |
|
|||
|
CDLG4(I.S) |
4 mm² 2 LEVEL S... |
Multiple level |
0.2 - 4.0 mm2 |
-- |
-- |
|
|||
|
|
CDLG4 |
4 mm² FEED THRU... |
Multiple level |
0.2 - 4 mm2 |
32A |
500 |
|
|||
|
CDLG2.5 |
2.5 mm² 2 LEVEL... |
Multiple level |
0.2 - 2.5 mm2 |
24 A |
500 |
|
|||
|
CTL2.5U |
2.5 mm² 3 LEVEL... |
Multiple level |
0.2 - 2.5 mm2 |
24 A |
500 |
|
|||
|
|
CTL2.5UH |
2.5 mm² 3 LEVEL... |
Multiple level |
0.2 - 2.5 mm2 |
24 A |
500 |
|
|||
|
CTLG2.5 |
2.5 mm² 3 LEVEL... |
Multiple level |
0.2 - 2.5 mm2 |
24 A |
440 |
|
|||
|
CTSG2.5 |
2.5MM² SCR CLM... |
Grounding |
0.2 - 2.5 mm2 |
-- |
-- |
|
|||
|
CTSG4 |
4MM² SCR CLM GR... |
Grounding |
0.2 - 4 mm2 |
-- |
-- |
|
|||
|
CGT6N |
6 mm² SCREW CLA... |
Grounding |
0.2 - 6 mm2 |
-- |
-- |
|
|||
|

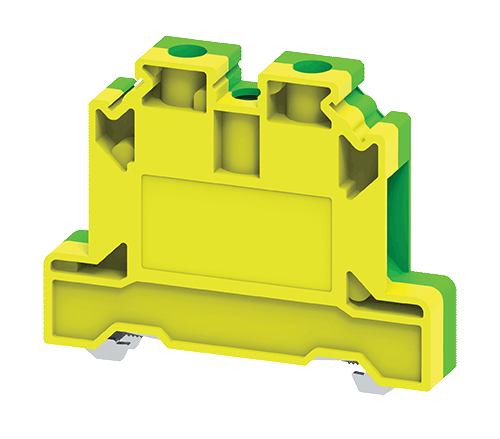

CGT10N |
10 mm² SCREW CL... |
Grounding |
0.2 - 10 mm2 |
-- |
-- |
|
|||
|
CGT16N |
16 mm² SCREW CL... |
Grounding |
0.2 - 16 mm2 |
-- |
-- |
|
|||
|
CGT35U |
35 mm² SW CL GR... |
Grounding |
2.5 - 35 mm2 |
-- |
-- |
|
|||
|
CGT50/70N |
70 mm² SCREW CL... |
Grounding |
10 - 70 mm2 |
-- |
-- |
|
|||
|
CGMT4 |
4 mm² SCREW CLM... |
Grounding |
0.2 - 4 mm2 |
-- |
-- |
|
|||
|
CENC4 |
4mm² NEUTRAL/EA... |
Grounding |
10mm2 |
-- |
-- |
|
|||
|
CENC16 |
16mm² NEUTRAL/E... |
Grounding |
10 - 16 mm2 |
-- |
-- |
|
|||
|
CENC35 |
35mm² NEUTRAL/E... |
Grounding |
10 - 35 mm2 |
-- |
-- |
|
|||
|
CF4U |
4mm² Ø5X20mm FU... |
Fuse |
0.2 - 4.0 mm2 |
6.3 A |
800 |
|
|||
|
|
CF4UL6-60V |
4mm² Ø5X20mm SC... |
Fuse |
0.2 - 4.0 mm2 |
10A |
1000 |
|
|||
|
|
CF4UL110-240V |
4mm² Ø5X20mm SW... |
Fuse |
0.2 - 4.0 mm2 |
10A |
1000 |
|
|||
|
|
CF4UL110-240VBK |
SL 4.0 SQ PA (W... |
Fuse |
0.2 - 4.0 mm2 |
10A |
1000 |
|
|||
|
|
CF4UL110-240VBU |
4mm² Ø5X20mm SW... |
Fuse |
0.2 - 4.0 mm2 |
10A |
1000 |
|
|||
|
|
CF4UL440V5.0 |
4mm² Ø5X20mm 5m... |
Fuse |
0.2 - 4.0 mm2 |
10A |
1000 |
|
|||
|
CAFL4U |
4mm² Ø6X32mm 6.... |
Fuse |
0.2 - 4.0 mm2 |
6.3 A |
1000 |
|
|||
|
|
CAFL4UW/F |
4mm² Ø6X32mm FU... |
Fuse |
0.2 - 4.0 mm2 |
6.3 A |
1000 |
|
|||
|
|
CAFL4UL110V |
4mm² Ø6X32mm 6.... |
Fuse |
0.2 - 4.0 mm2 |
6.3 A / 32 A |
800 |
|
|||
|
|
CAFL4UL110VW/F |
4mm² Ø6X32mm FU... |
Fuse |
0.2 - 4.0 mm2 |
6.3 A / 32 A |
800 |
|
|||
|
|
CAFL4UL220V |
4mm² Ø6X32mm 6.... |
Fuse |
0.2 - 4.0 mm2 |
6.3 A / 32 A |
800 |
|
|||
|
|
CAFL4UL220VW/F |
4mm² Ø6X32mm FU... |
Fuse |
0.2 - 4.0 mm2 |
6.3 A / 32 A |
800 |
|
|||
|
|
CAFL4UL24V |
4mm² Ø6X32mm 6.... |
Fuse |
0.2 - 4.0 mm2 |
6.3 A / 32 A |
800 |
|
|||
|
|
CAFL4UL24VW/F |
4mm² Ø6X32mm FU... |
Fuse |
0.2 - 4.0 mm2 |
6.3 A / 32 A |
800 |
|
|||
|
|
CAFL4UL440V |
4mm² Ø6X32mm 6.... |
Fuse |
0.2 - 4.0 mm2 |
6.3 A / 32 A |
800 |
|
|||
|
|
CAFL4UL48V |
4mm² Ø6X32mm 6.... |
Fuse |
0.2 - 4.0 mm2 |
6.3 A / 32 A |
800 |
|
|||
|
DDFL4U |
4 mm² 2 LEVEL Ø... |
Fuse |
0.2 - 4.0 mm2 |
6.3 A / 32 A |
800 |
|
|||
|
|
DDFL4UW/F |
4 mm² 2 LEVEL Ø... |
Fuse |
0.2 - 4.0 mm2 |
6.3 A / 32 A |
800 |
|
|||
|
|
DDFL4UE110-240V |
4 mm² 2 LVL Ø5X... |
Fuse |
0.2 - 4.0 mm2 |
6.3 A / 32 A |
800 |
|
|||
|
|
DDFL4UE110V |
4 mm² 2 LVL Ø5X... |
Fuse |
0.2 - 4.0 mm2 |
6.3 A / 32 A |
800 |
|
|||
|
|
DDFL4UE110VW/F |
4 mm² 2 LVL Ø5X... |
Fuse |
0.2 - 4.0 mm2 |
6.3 A / 32 A |
800 |
|
|||
|
|
DDFL4UE220V |
4 mm² 2 LVL Ø5X... |
Fuse |
0.2 - 4.0 mm2 |
6.3 A / 32 A |
800 |
|
|||
|
|
DDFL4UE220VW/F |
4 mm² 2 LVL Ø5X... |
Fuse |
0.2 - 4.0 mm2 |
6.3 A / 32 A |
800 |
|
|||
|
|
DDFL4UE24V |
4 mm² 2 LVL Ø5X... |
Fuse |
0.2 - 4.0 mm2 |
6.3 A / 32 A |
800 |
|
|||
|
|
DDFL4UE24VW/F |
4 mm² 2 LVL Ø5X... |
Fuse |
0.2 - 4.0 mm2 |
6.3 A / 32 A |
800 |
|
|||
|
|
DDFL4UE440V |
4 mm² 2 LVL Ø5X... |
Fuse |
0.2 - 4.0 mm2 |
6.3 A / 32 A |
800 |
|
|||
|
|
DDFL4UE48V |
4 mm² 2 LVL Ø5X... |
Fuse |
0.2 - 4.0 mm2 |
6.3 A / 32 A |
800 |
|
|||
|
|
DDFL4UE48VW/F |
4 mm² 2 LVL Ø5X... |
Fuse |
0.2 - 4.0 mm2 |
6.3 A / 32 A |
800 |
|
|||
|
|
DDFL4UE6-60V |
4 mm² 2 LVL Ø5X... |
Fuse |
0.2 - 4.0 mm2 |
6.3 A / 32 A |
800 |
|
|||
|
CKT4U |
4 mm² KNIFE DIS... |
Disconnect & Test |
0.2 - 4.0 mm2 |
28 A |
800 |
|
|||
|
|
CKT4UBU |
4 mm² KNIFE DIS... |
Disconnect & Test |
0.2 - 4.0 mm2 |
28 A |
800 |
|
|||
|
|
CKT4U/S |
4 mm² KNIFE DIS... |
Disconnect & Test |
0.2 - 4.0 mm2 |
28 A |
800 |
|
|||
|
|
CKT4U/4 |
4 mm² 4 WIRE KN... |
Disconnect & Test |
0.2 - 4.0 mm2 |
17.5 A |
800 |
|
|||
|
CKT4SP |
4 mm² KNIFE DIS... |
Disconnect & Test |
0.2 - 4 mm2 |
28 A |
1000 |
|
|||
|
CKT6U |
6 mm² KNIFE DIS... |
Disconnect & Test |
0.5 - 6 mm2 |
41 A |
1000 |
|
|||
|
CDTTU |
10mm² SLIDE LIN... |
Disconnect & Test |
1.5 - 6 mm2 |
41 A |
800 |
|
|||
|
CDTTUSH |
10 mm² SLIDE LI... |
Disconnect & Test |
1.5 - 6.0 mm2 |
10A |
160 |
|
|||
|
CDS6U |
6 mm² SLIDE LIN... |
Disconnect & Test |
0.2 - 6.0 mm2 |
41 A |
800 |
|
|||
|
CMT4 |
4 mm² SCREW CLA... |
Disconnect & Test |
0.2 - 4.0 mm2 |
32 A |
500 |
|
|||
|
STH4 |
6 mm² M4 CAPTIV... |
Stud/bolt Type |
1.5 - 36 mm2 |
41 A |
1000 |
|
|||
|
|
STH4TP |
HINGE TYPE PA S... |
Stud/bolt Type |
1.5 - 36 mm2 |
41 A |
1000 |
|
|||
|
STH6 |
35 mm² M6 CAPTI... |
Stud/bolt Type |
1.5 - 3.5 mm2 |
125 A |
1000 |
|
|||
|
CBS3U |
6 mm² M3 SCREW... |
Stud/bolt Type |
0.5 - 6 mm2 |
41 A |
1000 |
|
|||
|
CBS4U |
10 mm² M4 SCREW... |
Stud/bolt Type |
1.5 - 10 mm2 |
57 A |
1000 |
|
|||
|
CBS5U |
16 mm² M4 SCREW... |
Stud/bolt Type |
1.5 - 16 mm2 |
76 A |
1000 |
|
|||
|
CSB3/N3U |
6mm² M3 STUD TY... |
Stud/bolt Type |
0.5 - 6.0 mm2 |
41 A |
1000 |
|
|||
|
|
CSB3/N3USH |
6mm² M3 STUD SH... |
Stud/bolt Type |
0.5 - 6.0 mm2 |
41 A |
1000 |
|
|||
|
|
CSB3/N3UL |
6mm² M3 STUD TY... |
Stud/bolt Type |
0.5 - 6 mm2 |
41 A |
800 |
|
|||
|
CSB4/N4UN |
10mm² M4 STUD S... |
Stud/bolt Type |
1.5 - 10.0 mm2 |
57 A |
1000 |
|
|||
|
CSB4/N4USH |
10mm² M4 STUD S... |
Stud/bolt Type |
1.5 - 10 mm2 |
57 A |
1000 |
|
|||
|
CSB5/N5U |
16mm² M4 STUD S... |
Stud/bolt Type |
1.5 - 16.0 mm2 |
76 A |
1000 |
|
|||
|
|
CSB5/N5USH |
16mm² M5 STUD S... |
Stud/bolt Type |
1.5 - 16 mm2 |
76 A |
1000 |
|
|||
|
CSTSN4U |
10mm² M4 STUD N... |
Stud/bolt Type |
1.5 - 10 mm2 |
57 A |
1000 |
|
|||
|
CSTSN5U |
16mm² M5 STUD N... |
Stud/bolt Type |
1.5 - 16 mm2 |
76 A |
1000 |
|
|||
|
CSTSN6U |
35mm² M6 STUD N... |
Stud/bolt Type |
1.5 - 35.0 mm2 |
125 A |
1000 |
|
|||
|
CSTSN6USH |
35mm² M6 STUD S... |
Stud/bolt Type |
1.5 - 35 mm2 |
125 A |
1000 |
|
|||
|
CBDT4UN |
6 mm² M4 BR STU... |
Stud/bolt Type |
1.5 - 6.0 mm2 |
41 A |
1000 |
|
|||
|
CBDT4UNS |
6 mm² M4 BR STU... |
Stud/bolt Type |
1.5 - 6.0 mm2 |
41 A |
1000 |
|
|||
|
STH4DT |
6 mm² DISCONNEC... |
Stud/bolt Type |
1.5 - 6.0 mm2 |
41 A |
1000 |
|
|||
|
STH4DTSH |
6 mm² DISCON CA... |
Stud/bolt Type |
1.5 - 6 mm2 |
34 A |
1000 |
|
|||
|
CBB35/50 |
50 mm² FD THRU... |
Stud/bolt Type |
6.0 - 50.0 mm2 |
150 A |
1000 |
|
|||
|
|
CBB35/50LS |
50 mm² FEED THR... |
Stud/bolt Type |
6.0 - 50.0 mm2 |
150 A |
1000 |
|
|||
|
CBB70 |
70 mm² FD THRU... |
Stud/bolt Type |
6 - 70 mm2 |
192 A |
1000 |
|
|||
|
CBB70LS |
70 mm² FEED THR... |
Stud/bolt Type |
6 - 70 mm2 |
192 A |
1000 |
|
|||
|
CBB95 |
95 mm² FD THRU... |
Stud/bolt Type |
16.0 - 95 mm2 |
232 A |
1000 |
|
|||
|
CBB95LS |
95 mm² FEED THR... |
Stud/bolt Type |
16.0 - 95 mm2 |
232 A |
1000 |
|
|||
|
CBB120 |
120 mm² FD THRU... |
Stud/bolt Type |
16.0 - 120 mm2 |
269 A |
1000 |
|
|||
|
CBB120LS |
120 mm² FEED TH... |
Stud/bolt Type |
16.0 - 120 mm2 |
269 A |
1000 |
|
|||
|
CBB150 |
150 mm² FD THRU... |
Stud/bolt Type |
16 - 150 mm2 |
309 A |
1000 |
|
|||
|
CBB150LS |
150 mm² FEED TH... |
Stud/bolt Type |
16 - 150 mm2 |
309 A |
1000 |
|
|||
|
CBB185 |
185 mm² FD THRU... |
Stud/bolt Type |
16 - 185 mm2 |
353 A |
1000 |
|
|||
|
CBB185LS |
185 mm² FEED TH... |
Stud/bolt Type |
16 - 185 mm2 |
353 A |
1000 |
|
|||
|
PTB35/50 |
50 mm² FEED THR... |
Stud/bolt Type |
1.5 - 50.0 mm2 |
150 A |
1000 |
|
|||
|
|
PTB35/50SH |
50 mm² FT BARRI... |
Stud/bolt Type |
1.5 - 50 mm2 |
150 A |
1000 |
|
|||
|
PTB70/95 |
95 mm² FEED THR... |
Stud/bolt Type |
1.5 - 95.0 mm2 |
232 A |
1000 |
|
|||
|
|
PTB70/95SH |
95 mm² FT BARRI... |
Stud/bolt Type |
1.5 - 95 mm2 |
232 A |
1000 |
|
